Introduction

Background Hydraulic fracturing (HF) has evolved from conventional stimulation methods to sophisticated, data-driven optimization processes essential for unconventional reservoir development. First industrialized in 1949, HF became transformative when combined with horizontal drilling and multi-stage completion technologies in the late 1990s.

Key Evolutionary Milestones:

— 1947: First experimental HF treatment

— 1968: Introduction of high-volume fracturing

— 1997: Slick water fracturing implementation

— 2000s: Multi-well pad development and micro seismic monitoring

— 2020s: Machine learning integration and real-time optimization

Modern HF operations in unconventional reservoirs (tight sands, shale formations, coalbed methane) require precise engineering to create complex fracture networks that maximize stimulated reservoir volume (SRV) while minimizing environmental impact and operational costs.

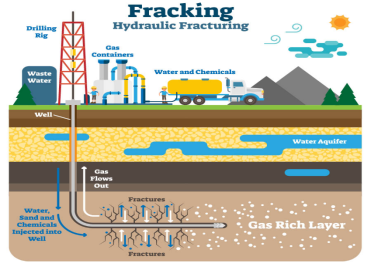

Fig. 1. Hydraulic fracturing process schematic showing surface equipment, wellbore architecture, and subsurface fracture propagation

Critical Challenge : Each reservoir exhibits unique geological and geomechanically characteristics, necessitating customized fracture designs rather than standardized approaches.

Fundamental Mechanisms and Fracture Propagation

Understanding fracture propagation mechanics is essential for optimal design. Recent advances in numerical simulation have revealed complex interactions between hydraulic fractures and reservoir heterogeneity.

Fracture Propagation Modes:

1. Tensile Failure: Primary mechanism where fluid pressure exceeds minimum principal stress plus rock tensile strength
2. Shear Slip: Activation of pre-existing natural fractures
3. Mixed-Mode Propagation: Combination of tensile and shear mechanisms in heterogeneous formations

Phase-Field Method Advances

The phase-field fracture method has emerged as a transformative approach, combining Griffith's energy principles with diffusive crack representation. This method naturally captures complex behaviors like crack branching without predefined fracture criteria

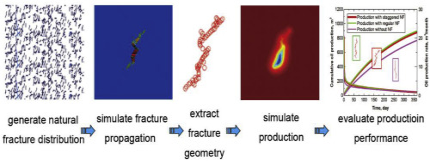

Fig. 2. Integrated workflow for fracture propagation and reservoir simulation showing

(a) natural fracture network generation, (b) hydraulic fracture propagation, (c) stimulated fracture geometry, and (d) production performance prediction

Key Insight : Reservoirs with >80 % brittle minerals demonstrate 20.6 % larger damage areas and 8.3 % lower initiation pressures compared to ductile formations, emphasizing the importance of brittleness index evaluation

Optimization Strategies and Design Parameters

Effective HF design requires systematic optimization of multiple interdependent parameters. Recent studies demonstrate that optimization must balance fracture complexity with economic constraints.

Table 1

Critical Design Parameters

Advanced Techniques

Zipper Fracturing: Simultaneous stimulation of parallel horizontal wells to enhance stress interference and fracture complexity

Hydra-jet Fracturing: Combines hydra jetting with HF for precise fracture initiation

Temporary Plugging: Diverting agents to create complex fracture networks

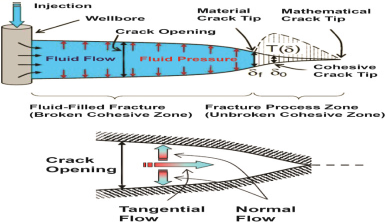

Fig. 3. Cohesive zone model for fracture propagation showing fluid flow, crack opening, and process zone mechanics in horizontal well multi-stage fracturing

Machine Learning and AI Integration

The integration of machine learning (ML) represents a paradigm shift in HF optimization, enabling real-time decision-making and predictive analytics from large operational datasets

ML Applications in HF:

1. Artificial Neural Networks (ANN)

— Khouly et al. (2024) achieved 0.93 correlation coefficient using ANN for fracture geometry prediction in the Western Desert of Egypt

— Data split: 70 % training, 15 % validation, 15 % testing

2. Transfer Learning with Physics-Based Data

— Khan et al. (2024) developed physics-based datasets with 62 parameters

— Improved predictive performance by 15.12 % RMSE and 15.88 % MAPE

3. Particle Swarm Optimization (PSO)

— Achieved 14.2 % production increase over initial predictions

— Optimized values aligned with real data in 88 % of cases

4. Deep Reinforcement Learning

— Real-time production optimization during fracturing operations

Advantages of ML Approaches:

— Processing of complex, nonlinear relationships in operational data

— Pattern recognition across multiple geological and operational scenarios

— Reduction of computational time compared to conventional numerical simulation

Fig. 4. Machine learning framework for fracture parameter prediction incorporating XGBoost and Bayesian optimization for enhanced forecasting accuracy

Proppant Transport and Placement Optimization

Proppant placement critically determines long-term fracture conductivity and well productivity. Recent research focuses on optimizing proppant transport in complex fracture geometries.

Proppant Transport Mechanisms:

— Vertical Fractures: Gravity settling dominates; requires high fluid viscosity or

— Velocity Inclined Fractures: Balance between gravity and drag forces

— Horizontal Fractures: Buoyancy effects and proppant banking

Innovations in Proppant Technology:

— Micro-proppants: Enhanced placement in secondary fractures and micro-fractures

— Buoyant Proppants: Carbon fullerenes and lightweight materials for improved transport in low-viscosity fluids

— Resin-Coated Proppants: Enhanced crush resistance and reduced flowback

Optimization Strategies:

1. StageOpt Tool Implementation: Physics-based wellbore dynamics simulator for perforation design optimization
2. Tapered Perforating: Variable shot diameter to balance fluid distribution
3. Real-time Monitoring: Distributed acoustic sensing (DAS) for proppant placement verification

Fig. 5. Proppant transport laws in multi-branched fractures showing

(a) vertical, (b) inclined, and (c) horizontal fracture configurations with gravity and drag force interactions

Numerical Simulation and Case Studies

Modern HF design relies heavily on numerical simulation to predict fracture behaviour before field implementation. Coupled hydro-mechanical models provide essential insights into fracture network development.

Table 2

Simulation Methodologies

Case Study: Southwestern Iran

— Objective: Optimize HF design for low-permeability carbonate reservoir

— Methodology: FracCADE simulation with iterative parameter refinement

— Optimal Design: 12 pumping stages including pad, 10 particle-plugging stages, and flush

— Result: Simulation 16 selected based on theoretical alignment and software outputs

Key Findings from Numerical Studies:

— Horizontal stress difference >10 MPa limits fracture complexity

— Natural fracture density (ρa ≥ 0.05) enhances network complexity by 30–40 %

— Fracture initiation pressure correlates strongly with stress difference (R² = 0.92)

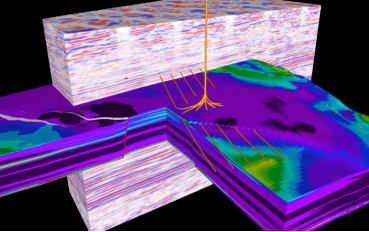

Fig. 6. 3D visualization of geologic and petrophysical data for unconventional reservoir characterization and risk management

Future Directions and Conclusions

The optimization of hydraulic fracturing design continues to evolve toward intelligent, automated systems that integrate multi-disciplinary data for real-time decision-making.

Emerging Technologies:

1. Real-time Fracture Monitoring : Fiber optic distributed sensing for immediate geometry verification
2. Automated Pumping Control: AI-driven adjustment of rates and pressures based on microseismic feedback
3. Alternative Fracturing Fluids:

— LPG (liquefied petroleum gas) gel systems for reduced water usage

— CO₂-based fracturing for thermal stress creation

— Nanoparticle-enhanced fluids for improved proppant transport

4. Enhanced Geothermal Systems (EGS): Application of HF techniques to renewable energy extraction

Conclusions:

— Integration is Critical : Successful HF optimization requires coupling geological, geomechanical, and operational data

— Machine Learning Enhancement : AI/ML methods provide 15–20 % improvement in prediction accuracy compared to conventional approaches

— Economic Balance: Optimal designs consider both technical performance and cost constraints larger fracturing volumes do not always yield proportional production increases

— Environmental Considerations: Development of waterless or reduced-water fracturing technologies addresses sustainability concerns

References:

1. ScienceDirect. (2019). «An integrated workflow for fracture propagation and reservoir simulation in tight oil». Journal of Petroleum Science and Engineering

2. Dynamic Graphics, Inc. (2021). «Managing Risk in Unconventional Reservoir Development Through Visualization of Geologic and Petrophysical Data».

3. MDPI Energies. (2023). «A Powerful Prediction Framework of Fracture Parameters for Hydraulic Fracturing Incorporating Extreme Gradient Boosting and Bayesian Optimization». Energies, 16(23), 7890.

4. ScienceDirect. (2021). «Micro-proppant placement in hydraulic and natural fracture stimulation in unconventional reservoirs: A review». Greenery Science and Engineering.

5. Dynamix Agitators Inc. (2020). «Fracking and Mixer Use».

6. Petroleum Exploration and Development. (2023). «Proppant transport law in multi-branched fractures induced by volume fracturing». Petroleum Exploration and Development, 50(4).

7. Scientific Reports. (2024). «Optimization of fracturing technology for unconventional dense oil reservoirs based on rock brittleness index». Scientific Reports.

8. Journal of Chemical and Petroleum Engineering. «Design and Optimize Hydraulic Fracturing Operation». University of Tehran.

9. Energies (MDPI). (2026). «Numerical Simulation Study on Fracture Propagation Mechanisms in Terrestrial Shale Reservoirs». Energies, 19(4), 922.

10. Texas A&M University. (2025). «Hydraulic Fracturing, Well Stimulation and Profile Modification». Harold Vance Department of Petroleum Engineering.

11. Scientific Reports. (2025). «Evaluation of hydraulic fracturing using machine learning». Scientific Reports.

12. Advances in Geo-Energy Research. (2024). «Experimental and numerical simulation technique for hydraulic fracturing of shale formations». Advances in Geo-Energy Research, 8(2).

13. European Commission Joint Research Centre. (2013). «An overview of hydraulic fracturing and other formation stimulation technologies for shale gas production». EUR 26347.

14. ResFrac. (2024). «Notable Papers from the 2024 SPE Hydraulic Fracturing Technology Conference.
